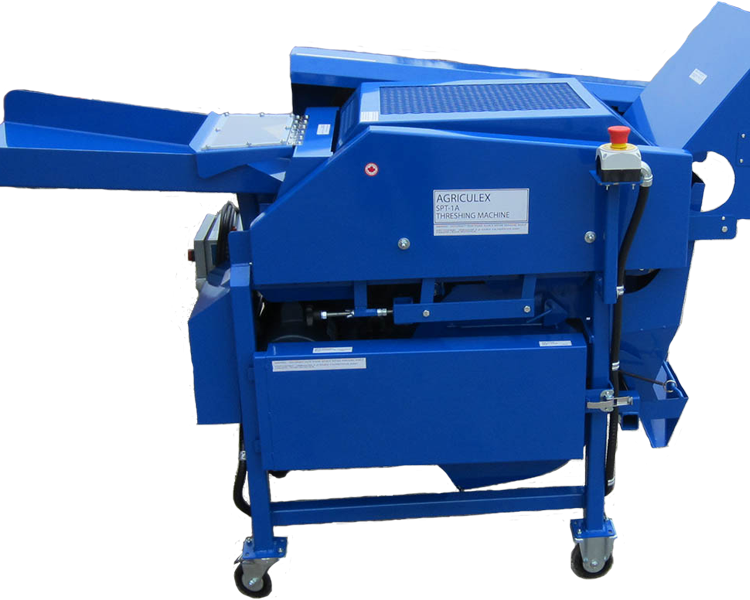

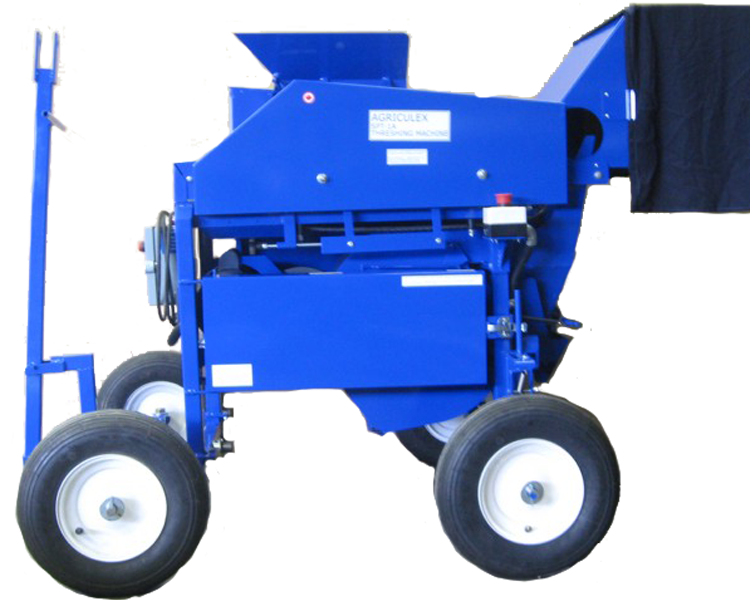

SPT-1A: Single Plant Thresher



Features

  1. Effectively threshes different crops from soybeans to canola
  2. Little to no seed carry-over through careful design
  3. Exceptionally clean seed with very little loss from aerodynamic separation
  4. Easy to be used by just one operator
  5. Electric and gasoline versions available
  6. Adjustable settings

DataIndoorFieldGasoline
Length (mm)
(not including tongue)		201020102010
Width (mm)79011121112
Height (mm)113413181318
Belt Width (mm)top belt 300; bottom belt 406top belt 300; bottom belt 406top belt 300; bottom belt 406
Threshing Area Length (mm)420420420
Motor3/4 hp
110V Or 220V
10.8A 5.4A
60Hz *		3/4 hp
110V Or 220V
10.8A 5.4A
60Hz *		120cc ,4HP
4 Stroke
Weight in kg (boxed)160170180

Pricing CDN $U.S $
Electric Motor w/ Indoor Caster Wheels (110V/60Hz)
Forage version		$18,438

$19,360		$13,658

$14,341
Electric Motor w/ Indoor Caster Wheels (220V/50Hz)
Forage version		$19,066

$20,019		$14,123

$14,829
Electric Motor w/ Outdoor Field Wheels (110V/60Hz)
Forage version		$19,309

$20,273		$14,303

$15,018
Electric Motor w/ Outdoor Field Wheels (220V/50Hz)
Forage version		$20,387

$21,406		$15,102

$15,857
Gasoline Motor w/ Outdoor Field Wheels
Forage version		$23,371
$24,540		$17,312
$18,177

Belt Replacement PricingCDN $U.S $
SPT-1
Top - Bucket Top Type$293$217
Top - Cleat Type$426$315
Bottom - Bucket Top Type$330$244
Bottom - Diamond Shape Type$482$357
SPT-1A
Top - Bucket Top Type$293$217
Top - Cleat Type$426$315
Bottom - Bucket Top Type$347$257
Bottom - Diamond Shape Type$583$432

Video Overview
